Overview

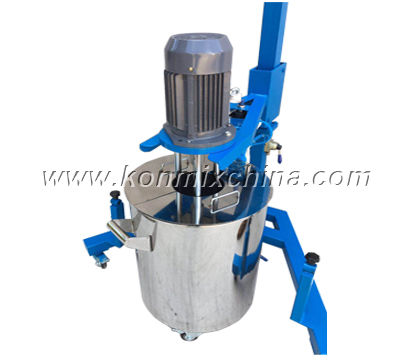

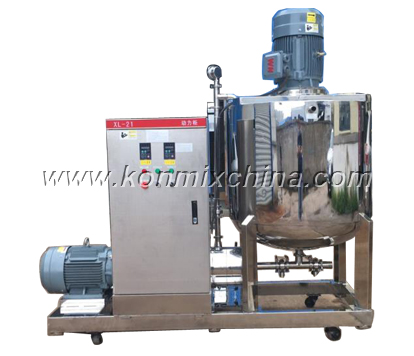

Our homogenizer machine have the lifting stand/frame & fixed on vessel style.

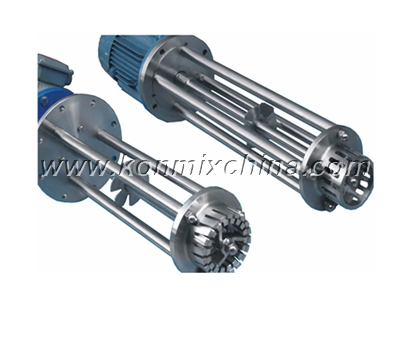

The workhead is high-shear rotor/stator mixing workhead, and made of high quality stainless-steel.

User can select to have the vacuum closure work condition.

Design Highlights

• Voltage: 380/220V, 50/60HZ, 3P or customized.

• Power: 1.1KW ~ 110KW.

• Speed control: can select variable speed control.

• High shear workhead is highly precised foundry.

• The contacts parts made of stainless-steel, and surface polished up to Ra 0.4.

Working Principle

It is consisted of rotor and stator. Under the centrifugal force and force generated by the high-speed rotor, the stator

will put materials under comprehensive action such as strong shearing, centrifugal extrusion, crashing,

hydraulic friction etc.

And the solid phase, liquid phase and gas phase which is insoluble at beginning will prompt evenly dispersed and emulsified with various additives. After high-frequency circulation, stable materials with high quality are obtained in a short time. With the hydraulic lifting cylinder, so mixing workhead can lift up when works well.

Technical Parameter

Remarks:

* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors, such as materials' viscosity, gravity etc.

* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc.Correct data is required for correct model selection.

* Not all products’ parameter are listed. For more information, please contact us by info@konmixchina.com

Product Application

Material viscosity: <=100,000 cps

Production Capacity: 0L ~ 10,000L

Applied materials: suitable for liquid, liquid with powder's high speed shearing, dissolving and homogenious, offten applied in the field of food, coating, paint, dye, printing ink, pesticide, agrochemical, cosmetics, resin, adhesive, latex, pharmaceutical, oil, etc.
