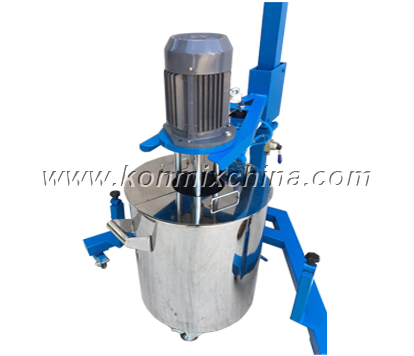

Overview

This model is also called " high-sehar emulsifying mixer ".

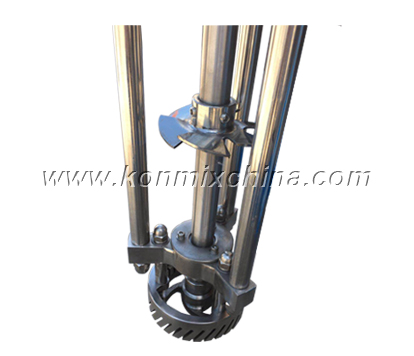

The workhead is high-shear rotor & stator structure.

High shearing heads will generate high frequency mechanical action on the products.

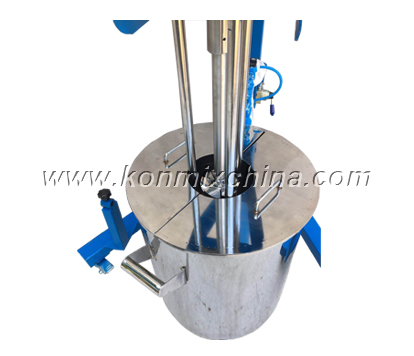

Customer can select the pneumatic or electric lifting type stand.

Design Highlights

• Voltage: 380/220V, 50/60HZ, 3P or customized as client's need.
• Power: 1.1KW ~ 90KW.
• Speed control: can select variable speed control.
• High shear workhead is highly precised foundry.

Working Principle

It is consisted of rotor and stator. Under the centrifugal force and hydraulic force generated by the high-speed rotor, the stator will put materials under comprehensive action such as strong shearing, centrifugal extrusion, crashing, hydraulic friction etc. And the solid phase, liquid phase and gas phase which is insoluble at beginning will prompt evenly dispersed and emulsified with various additives. After high-frequency circulation, stable materials with high quality are obtained in a short time.

Technical Parameter

* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors,

such as materials' viscosity, gravity etc.

* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required for
correct model selection.

* Not all products’ parameter are listed. For more information, please contact us by info@konmixchina.com.

Product Application

Material viscosity: <=50,000 cps

Production Capacity: 0L ~ 1,000L

Applied materials: suitable for liquid or liquid with powder’s high speed stirring and homogenious in the field of food,

coating, paint, dye, inks, cosmetics, pesticide, agrochemical, resin, adhesive, latex, pharmaceutical, oil, emulsion etc.
