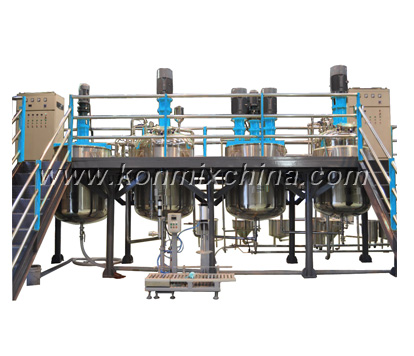

Name: Production Line For Solvent-base Paint

Category: Production Line

Model: KCT-B

Feature: It can be designed as semi-automatic control or fully automatic control paints plant



This solvent-base Paint/Coating Complete Production Line mainly includes: Dispersing system, grinding system-

color mixing  system, filling& filter system, control system and supporting platform.

It can be semi-automatic control or all automatic control from materials feeding, dispersing, milling, mixing to filling.

Design Highlights

• The dispersion system, we can adopt one disperser match to use with several tanks for customer.

• This model will enhance work efficiency and save occupying area.

• Grinding system adopts Bead mill or basket mill to obtain excellent finished quality.

• If grinding color paste, the Pin rod type Horizontal bead mill is for selection.

• Mixture system adopts multifunctional mixer, it is also suitable for high viscous materials, such as varnish.

Technical Parameter

1. Power supply: 380V/220V, 50Hz or according to customer's standard

2. Electrical control components:  imported inverter and components

3. Contacting parts material: Stainless steel

4. Output: 1000T/year - 100000T/year

5. Measurement: With imported weight sensor & flow meter

6. Work platform: With steel platform

7. Use superfine basket mill/bead mill for dispersing and particle size reduction to achieve high efficiency.

8. This system is convenient for washing and lesser residue.

9. Programmable logic control (PLC) and analog input modules adopt international famous brands.

10. It has processing unit as the core with compact structure, strong anti-jamming abilities.

11. Whole project is responsible by our project managers, to ensure whole line running regularly.

Product Application

Applied materials: suitable for production of coating, paint, color, resin, adhesive, latex, etc.
