Overview

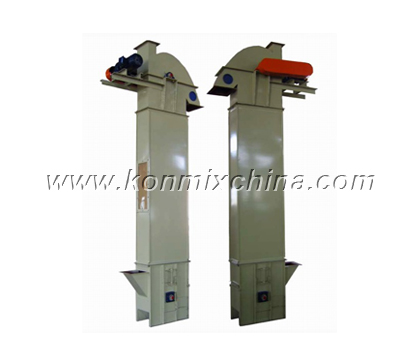

The material from the bucket ladles out, with convey belt or chain ascenting to the top.

The bucket elevator discharges the material into accepting slot. Driven bucket elevator belts normally is from rubber belt.

It installs in driven rattle and veered rattle. Bucket elevator with chain driven is with 2 parallels driven chain.

Normally bucket elevator is with machine shell to void stive around.

The bucket elevator is used for materials conveying from low to high position; through vibrating platform discharging materials and conveying automatic and continuity.

Design Highlights

• The driving device adopts gearbox reducer which embodies the merits of large torque.

• Low noise, no oil seepage and with a long lifetime.

• The tube is made of high quality seamless pipes which are connected by flange.

• Its overall rigidity is good and bearing capacity is large.

• Working place and posture can be chosen.

• It is convenient to do assembly & disassembly and relocation.

• Fully SS304 stainless steel or Carbon-steel structure of the contacting parts.

Technical Parameter

* The above listed data is calculated according to powder’s gravity of 1.0g/cm3 as medium. Model selection should depend on the

comprehensive factors, such as viscosity, mesh, gravity etc.

* If works under special environment, such as high temperature, high pressure, explosive, combustible, corrosive etc. Users need to

provide detailed data, in order to select and customize.

* Not all products’ parameter are listed. For more information, please contact our sales engineer by info@konmixchina.com

Product Application

It is widely used for conveying the powders, such as pharmaceutical, food, animal feed, pesticide, dye, chemical, plastic, ceramic, sand, coating, putty, sand, mortar and other industries.
