Overview

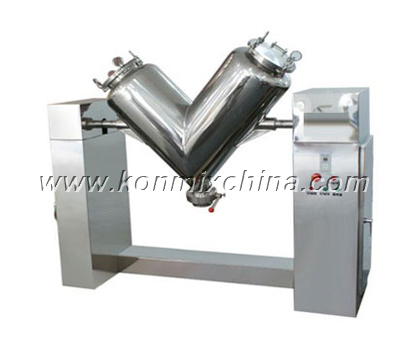

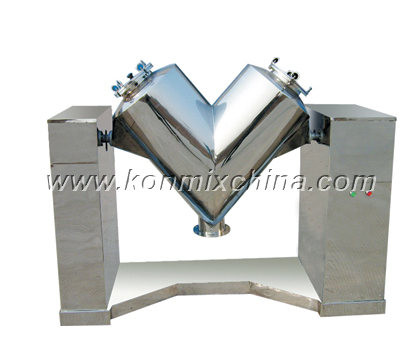

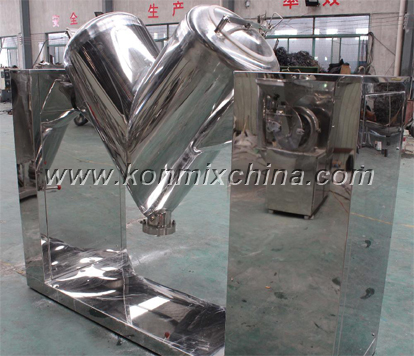

This model also called " V-Shape Blender ".

It comprises work-chamber which is connected by two cylinders soldering as " V " shape.

The chamber is whole running in working process, this machine is professional for powders mixture.

Design Highlights

• With rotary movement, the powder alternates, mixture and combines continuously in the lean cylinder.

• The material is transmitted from one area to another stochastically.

• This model without any mixing dead angle.

• It has high standard requirements for mixing materials with no residue.

Working Principle

This machine is equipped with a motor and reducer, the motor power is transmitted to the reducer through the belt,

and the reducer is transmitted to the V-shaped chamber through the coupling, which drives the V-shape chamber rotation continuously, the materials in the chamber will be fully mixed.

Technical Parameter

Remarks:

* The above listed data is calculated according to powder’s gravity of 1.0g/cm3 as medium. Model selection should depend on the

comprehensive factors, such as viscosity, mesh, gravity etc.

* If works under special environment, such as high temperature, high pressure, explosive, combustible, corrosive etc. Users need to provide

detailed data, in order to select and customize.

* Not all products’ parameter are listed. For more information, please contact our sales engineer by info@konmixchina.com

Product Application

It is widely used in stirring and mixing powder and powder, powder and liquid, such as pharmaceutical, food, animal feed, pesticide, chemical, pesticide, dyestuff, food, battery material, rare earth, sand, mortar and other industries.
