Overview

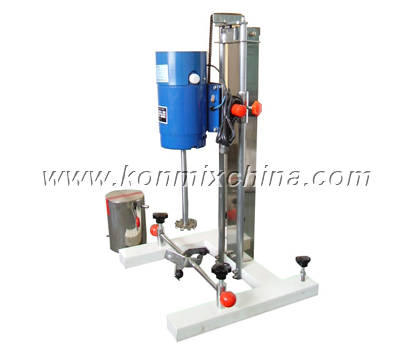

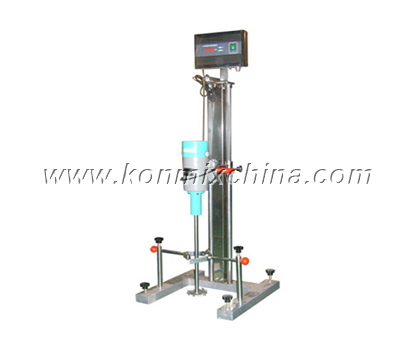

Lab mixer/dissolver is for dissolving, dispersion & mixing materials.

It is good at mixing low & middle viscosity products, this model is widely used for lab testing, research & development.

Design Highlights

• This mixer has very high peripheral tip speed of the toothed disc which reaches 8000rpm.

• The strong shearing, crashing and friction forces generated between the materials.

• Toothed disc disperse, dissolve and mix the materials efficiently.

• The large stress forces break down the agglomerates, and achieve symmetrical particles.

Working Principle

Through the high-speed rotation dispersing disc, the material will become in annular form flow, resulting in strong

vortex flow, which descend down to the bottom of the vortex in spiral state.

During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash

and friction among the particles.

Technical Parameter

1. Motor: precise motor

2. Power: 400W, 1100W

3. Power Supply: 220V,50HZ, single-phase

4. Speed Control:  various speed controlling

5. Speed: 0-8000RPM

6. Capacity: 0~20Liters

7. The contacting part materials is: SUS304

8. Other parts: Q235-A

9. Height Adjustment:  manual adjustment

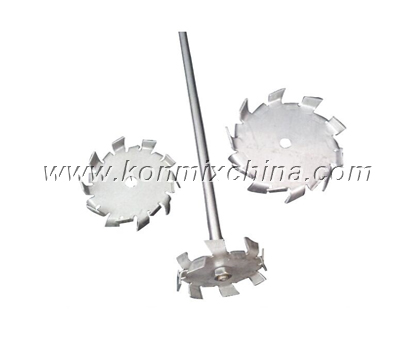

10. With dispersing blade Φ50mm, Φ60mm, one 1.5Liters tank

11. Package: by standard wooden or carton box

Product Application

This model is suitable for the dispersion, mixing of laboratory small trials, and often applied in the industries of coatings, paint, inks, petrochemical, pharmaceutical, food and fine chemical industries. It is widely used in the industrial production of scientific research, new product development and small batch products.
