Overview

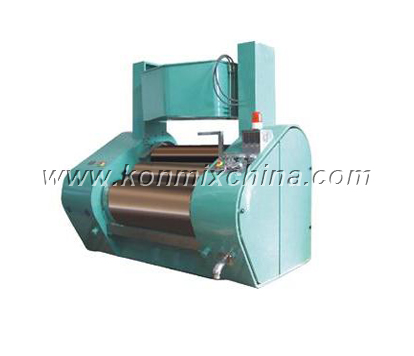

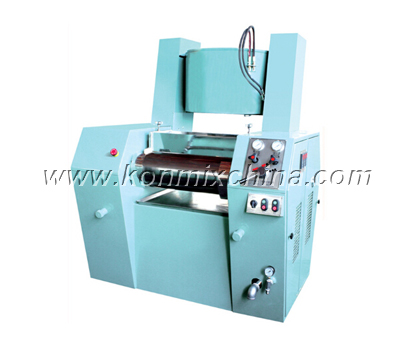

This vertical three roll mills have the roller layout on vertical style, and with hydraulic pressing system.

The hydraulic system is controlled by magnetic valve which is highly automatic control.

This machine is good at grinding high viscosity material.

With large production ability.

Design Highlights

• With different capacity models for optional.

• Voltage: 380V, 50/60HZ, 3Phase (voltage can be customized).

• Variable materials' fineness can be available by adjust hydraulic pressure.

• Whole machine's operation is controlled by hydraulic include feeding & charging materials.

• Rollers are made of special alloy material casting with high strength and anti-abrade.

• Rollers are vertical inclined layout ways.

• Transmission ways: by gears.

• Accessory: with scraping knife.

• This model is easy to operate.

Working Principle

Each of the three roller is equipped with an individually adjustable high-efficiency cooling system. Automatic, precise control ensures constant roll temperatures and thereby uniform, reproducible operating conditions.

The cooling water supply is automatically stopped when the machine is not running. This prevents undesirable cooling

of the rolls and unnecessary water consumption.

The hydraulic rolls pressing system guarantees high throughput and permanently stable, reproducible pres-sures in the

roll gap, finally get the best refined products.

Technical Parameter

* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors,

such as materials' viscosity,gravity etc.

* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required

for correct model selection.

* Not all products’ parameter are listed. For more information, please contact us by info@konmixchina.com

Product Application

This machine is suitable to do the materials of viscosity up to 3,000,000 cps.

Production capacity:  for industrial production process.

It is mainly used for the grinding of various kinds of paints, inks, pigments, plastics, cosmetics, soap, ceramics, food, rubber and other liquid and paste materials.
