Overview

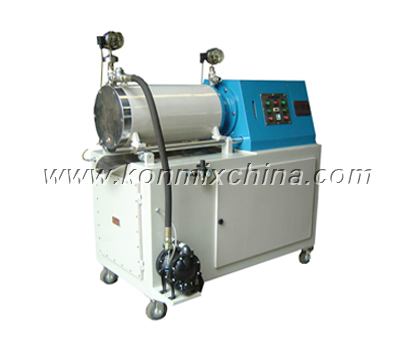

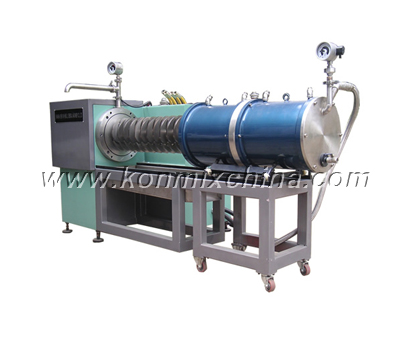

This disc type bead mill also called " Horizontal Sand Mill or Sand Grinder ".

Its grinding blade is round disc type.

The disc is made of wear-resistant materials.

It can deagglomerate flocculated materials to small particle size.

Easy to operate, low cost and high efficiency.

Design Highlights

• Strong crashing and friction between beads promote excellent grinding qualtiy.

• Good at grinding the paint, printing ink, pigment, pesticide, leather coating ---etc.

• With wide application, suitable for lab testing and industry production.

• The grinding medium is reliable & wear-resistance.

• Whole machine can be explosion-proof type.

• Voltage: 380V/50HZ, 3P or customize.

• Work chamber with 5L, 20L, 30L, 50L or 60L for optional.

• Mechanical seal: double-end type, with good sealing.

• Feeding pump: with air pump or electric gear pump for optional.

Working Principle

The pump will transfer the liquids materials into the grindind chamber. The spindle drives the dispersion turbine to rotate

at high speed and agitate the grinding medium (glass ball, porcelain ball, zirconia bead, alumina bead, etc.) to make it produce swirl and radial movement.

Thus, the product is forced to grind and disperse to achieve the specified fineness. At the same time, the work pressure

and working temperature are automatically controlled by the electric contact pressure gauge and the electric contact thermometer to ensure the safe operation of the whole machine. Meanwhile, the product and grinding medium are

separated by the dynamic material clearance.

It is suitable for large flow, medium and high viscosity water-based solvent’s ultra-fine grinding and dispersion.

Technical Parameter

* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors,

such as materials' viscosity,gravity etc.

* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required

for correct model selection.

* Not all products’ parameter are listed. For more information, please contact us by info@konmixchina.com

Product Application

This machine is suitable to do the materials of viscosity up to 20,000 cps.

Production capacity scope: 0~10,000Liters.

It is suitable for industrial of coatings, general printing inks, paint, and general pigment dispersions, pesticide, adhesive, ointment, cream, shampoo, calcium carbonate powder, liquids agrochemicals etc.
