Overview

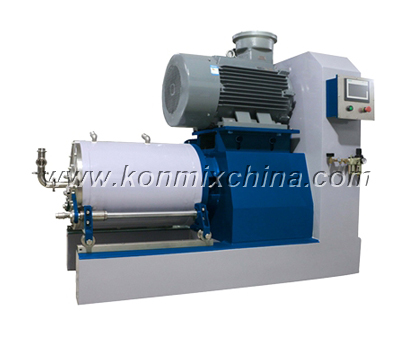

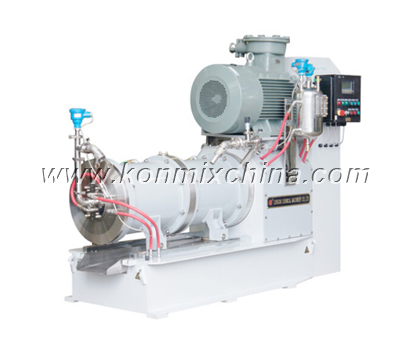

KBWS Pin-rod type Bead Mil is a closed wet mills for continuous production.

Compared traditional mills, it has higher work efficiency, better grinding & abrasion-resistance.

It is suitable for industries, such as: paint, ink, pigment, color paste, coatings, pesticide --- etc.

It can grind flocculated materials into the required particle size in short time.

Easily operate, safe, reliable and high efficient.

Design Highlights

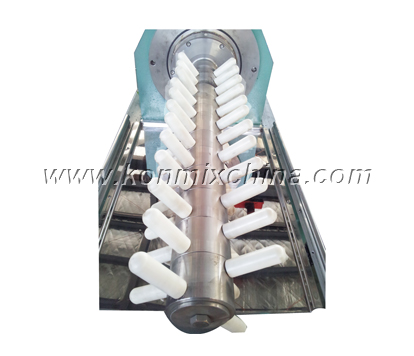

• The rotor and internal surface of the chamber strengthen the impact and shearing action to the materials.

• The machine is suitable for grinding and dispersing various materials with a wide range of viscosity.

• With special structure that can adjust the filled beads to meet different materials.

• It adopts dual-end mechanical seal.

• The main parts are high stability and long service life.

• With dynamic separation system, and the dynamic design makes materials flow smooth.

• User can choose grinding media with diameter 0.8-1.0 mm.

• This machine with triple cooling system: internal, external, and end face.

• The grinding heat exchanged come out in time.

• The material temperature, material pressure, water & air pressure are all controlled.

• With protection system ensure proper operation of whole machine.

Working Principle

By the feeding pump, the liquid materials will be processed by pre-dispersing and wetting. The materials with the

grinding media in cylinder is high-speed disperser agitation, so that the material of solid particles and grinding media

mutual produce more intense collision, friction, shear effect.

It achieves the goal of accelerating grinding fine grain and dispersive aggregate. After the abrasive dispersion,

the material separated by the dynamic separator and the grinding medium output from the discharge pipe.

This pin-rod type bead mill is especially suitable for the product with high viscosity and high particle size.

Technical Parameter

* The above listed max. capacity is calculated according to water as medium.Model selection should depend on the comprehensive factors,

such as materials' viscosity,gravity etc.

* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc.Correct data is required

for correct model selection.

* Not all products’ parameter are listed. For more information, please contact us by info@konmixchina.com

Product Application

This machine is suitable to do the materials of viscosity up to 20,000 cps.

Production capacity scope: 1L ~ 10,000Liters.

It is suitable for industrial of coatings, general printing inks, paint, and general pigment dispersions, pesticide,

adhesive, ointment, cream, shampoo, calcium carbonate powder, Nano pigment, --- etc.
