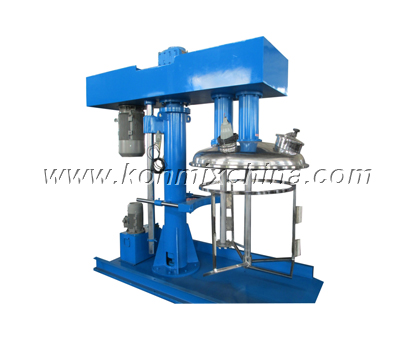

Name: Disperser Mixer (with scraper)
Category: Customizable dissolver
Model: KFS-D
Feature: With high-speed disperser & low-speed scraper blade, very competent for middle & high viscosity materials
Overview
This Dispersion Mixer is also called " Dual/doubel Shaft Mixer ”.
It integrates high-speed dispersion and low-speed mixing function together.
This mixer is professional for middle/high viscous products or thixotropic materials.
When under working, the high speed and low speed mixing workhead are running at the same time.
This model is with very ideal blending performance.
Design Highlights
• This machine has two basic styles: one is double shafts style, another is coaxial shaft style.
• The dual-shafts type is a high-speed dispersion with another low-speed anchor or butterfly blade.
• The coaxial type is high-speed disperser workhead and with a scraper blade structure.
• These two structures will be optional according to customer’s request.
• The running speed is various adjustment, and with digital display.
• Tank/Vessel can be customized with jacket, for heating or coolant.
• Vessel's surface is mirror polished treatment.
• Machine's overall with luminant appearance.
Working Principle
Through the high speed rotation dispersing disc, the materials flow in annular form flow, resulting in strong vortex flow, which descend down to the bottom of the vortex in spiral state. During the process, materials are dispersed, dissolved, mixed and emulsified efficiently due to the strong shearing crash and friction among the particles.

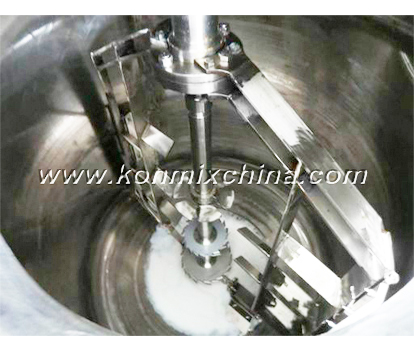

PTFE scraper rotates clinging to the tank wall to scrape the materials staying on the tank wall off and also enhances the material circulation.
The hydraulic pump drives the hydraulic cylinder ascend and descend, which drives the whole transmission and working set up and down.
Technical Parameter
Model
Capacity
Power
Speed
Disc dia.
Stroke
Hydraulic power
KFS-D-11
≤400
11
0-1440
250
900
0.75
KFS-D-15
≤500
15
0-1440
250
900
0.75
KFS-D-18.5
≤700
18.5
0-1440
300
1100
0.75
KFS-D-22
≤800
22
0-1440
350
1100
1.1
KFS-D-30
≤1200
30
0-1440
400
1100
1.1
KFS-D-37
≤1500
37
0-1440
400
1600
1.1
KFS-D-45
≤2000
45
0-1440
450
1600
1.1
KFS-D-55
≤2500
55
0-1440
500
1600
1.1
KFS-D-75
≤4000
75
0-1200
550
1800
2.2
Remarks:
(L)
(kw)
(rpm)
(mm)
(mm)
(kw)
* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors,
such as materials' viscosity,gravity etc.
* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc.Correct data is required
for correct model selection.
* Not all products’ parameter are listed. For more information, please contact us by info@konmixchina.com
Product Application
Material viscosity: <=200,000 cps
Production Capacity: 50L-5,000L
Applied materials: suitable for liquid or liquid-phase’s high speed stirring, dissolving and scattering in the field of coating, paint, dye, inks, biology, pharmacy, cosmetics, resin, adhesive, latex, pigment, pharmaceutical, oil, fertilizer, colorant, sealant, electrics battery pastes --- etc.
