Your Current Location:Home > Products > Heavy-duty Three Roll Mill

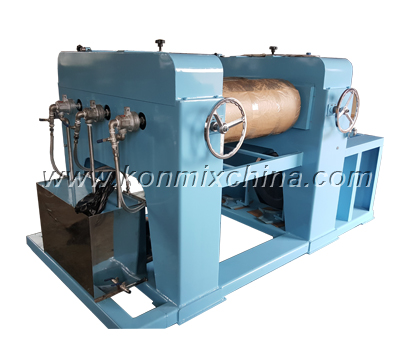

Name: Heavy-duty Three Roll Mill

Category: Industrial three roll mill

Model: KM-JS

Feature: With strong driving power, widely applied in high viscosity and hardness material including pencil core, slice-material, silicon rubber and pastes

INQUIRY

Overview


This heavy-duty three roll mill configures with strong driving power system.

This machine is good at grinding high viscosity & solid slice material.

With large production ability.


Design Highlights


• With different capacity models for optional.

• Voltage: 380V or 415V, 50HZ,3P (voltage can be customized).

• Variable materials' fineness can be available by adjust roller's gap.

• Whole machine's operation is controlled by control panel.

• Rollers are made of special alloy material casting with high strength and anti-abrade.

• Transmission ways: by gears.

• Accessory: with scraping knife.

• This model is easy to operate.


Working Principle


Each of the three roller is equipped with an individually adjustable high-efficiency cooling system. Automatic, precise control ensures constant roll temperatures and thereby uniform, reproducible operating conditions. The cooling water supply is automatically stopped when the machine is not running. This prevents undesirable cooling of the rolls and unnecessary water consumption. With strong driving power,  especially for silicon rubber, pencil core, reflex blue paste and so on.


Technical Parameter



Model

Power
(kw)

Roller Dia.
(mm)

Roller Length
(mm)

Slow Speed
(rpm)

Middle Speed
(rpm)

Fast Speed
(rpm)

KM-JS260

15

260

695

11

33

99

KM-JS400

37

400

900

11

33

99

KM-JS400(II)

55

400

1050

11

33

99

KM-JS400(III)

75

400

1350

11

33

99


Product Application


This machine is suitable to do the materials of viscosity up to 3,000,000 cps.
Production capacity:  for industrial production process.
It is mainly used for high viscosity and high hardness material. Especially for silicon rubber, pencil core, slice solid materials,

reflex blue paste and so on.
