Your Current Location:Home > Products > Batch High Shear Mixer

Name: Batch High Shear Mixer

Category: Industrial batch emulsifier

Model: KRH

Feature: High-shear rotor/stator head, with different style heads for selection. The working ways with the lifting up & stationary on vessel types

INQUIRY

Overview


This model is also called " high-shear emulsifier ".

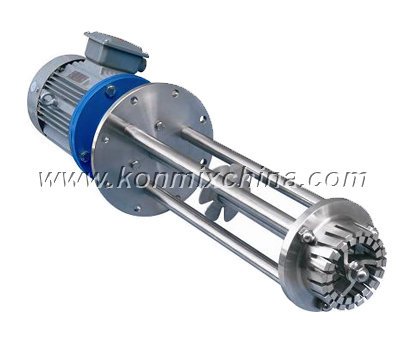

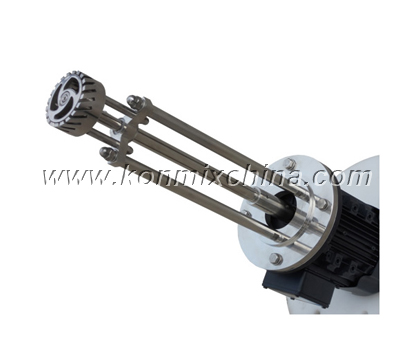

Its workhead is high shear rotor/stator structure.

The workhead will generate high frequency mechanical action.

The products will be under strong emulsification & mixing.

Design Highlights

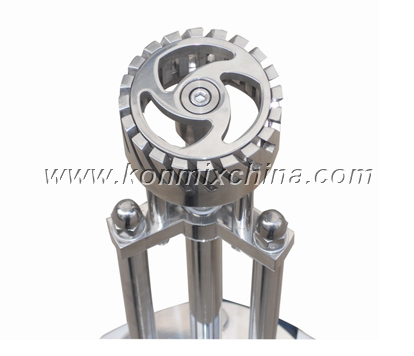

• Claw shaped workhead (Dual direction suction) is highly precised foundry.

• Good gap fitness and high tip speed ensure excellent emulsifying and homogenizing.

• All components are processed by CNC machine.

• With dynamic and static balance test for main shaft.

• Whole machine will ensure the stable&safe operation.

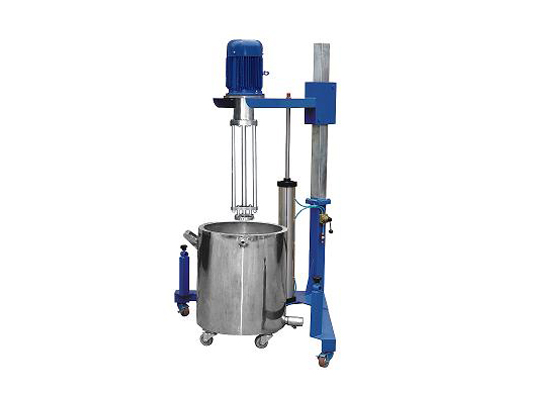

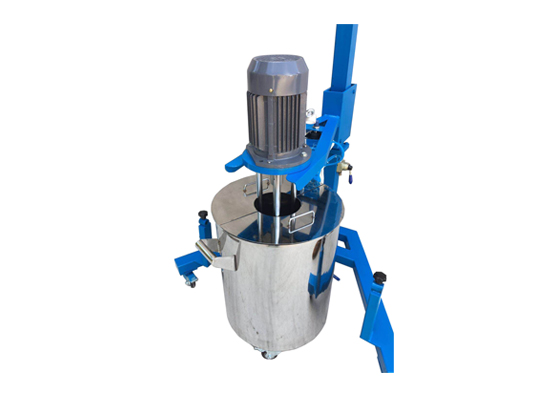

• This model can have the lifting up/lowering function.

•  With below different style shear head for optional.




Sawtooth type                                                                     Large round hole type                                                             Screen hole type
For fine emulsions                                                         For high viscous products                                                   For middle or low viscosity


Working Principle


It is consisted of rotor and stator. Under the centrifugal force and hydraulic force generated by the high-speed rotor, the stator will put materials under comprehensive action such as strong shearing, centrifugal extrusion, crashing, hydraulic friction etc. And the solid phase, liquid phase and gas phase which is insoluble at beginning will prompt evenly dispersed and emulsified with various additives. After high-frequency circulation, stable materials with high quality are obtained in a short time. With the hydraulic lifting cylinder, so mixing workhead can lift up when works well.

Technical Parameter



Model

Capacity
(L)

Power
(kw)

Speed
(rpm)

Lift stroke
(mm)

KRH-4

≤400

4

0-2880

800

KRH-7.5

≤800

7.5

0-2880

900

KRH-11

≤1000

11

0-2880

900

KRH-15

≤1200

15

0-1440

900

KRH-22

≤1800

22

0-1440

1100

KRH-30

≤2500

30

0-1440

1100

KRH-37

≤3000

37

0-1440

1600

KRH-45

≤4000

45

0-1440

1600

KRH-55

≤5000

55

0-1440

1600

KRH-75

≤6000

75

0-1440

1800

Remarks:

* The above listed max. capacity is calculated according to water as medium.Model selection should depend on the comprehensive factors,

such as materials' viscosity,gravity etc.

* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc.Correct data is required

for correct model selection.

* Not all products’ parameter are listed. For more information, please contact us by info@konmixchina.com



Product Application


Suitable to do the materials of viscosity up to 100,000 cps

Production Capacity: 0~10,000L

Applied materials: Suitable for industrial coatings, general printing inks, paint, and general pigment dispersions, cosmetic, cream, shampoo, calcium carbonate powder, liquids agrochemicals etc.
