Your Current Location:Home > Products > Horizontal Plough Mixer

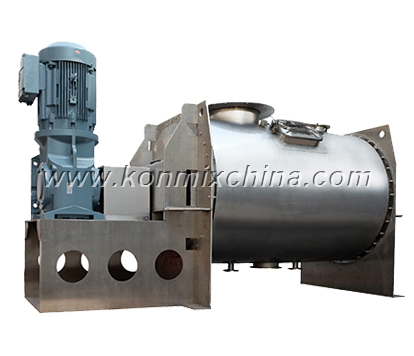

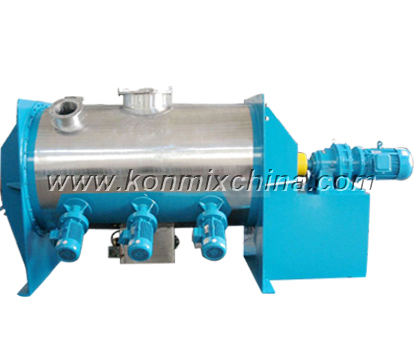

Name: Horizontal Plough Mixer

Category: Powder Mixers

Model: KLDH

Feature: With high shear coulter & high-speed flying cuterr blade, good blending performance, especially for thick-viscous materials or powders

INQUIRY

Overview


Plough shear mixer comprises: transmission mechanism, chamber, plough & flying cutter.

With the plough’s role, materials working convection movement along with the cylinder.

The flying cutter with high speed rotation to achieve uniform mixing in short time.

Transmission is driven by the couplings.


Design Highlights


• The high-speed cutting and low-speed blending achieve uniform mixture in short time.

• Working chamber is formed by stainless-stelel or carbon steel.

• With good sealing system on main axis' end.

• With different working capacity for optional.


Working Principle


The plow knife inside the plow is rotated with the spindle to rotate the material along the radial circumference of the barrel. At the same time,the radial materials flow through the flying knife group, and are scattered by the high-speed rotating blades, constantly changing and recombining. which makes the material mix well in a short time.


Technical Parameter



Model

Motor
(kw)

Speed
(rpm)

Capacity
(L)

Shape Size
(L*W*H)(mm)

Weight
(kg)

KLDH-0.1

3

85

30~70

1400*500*700

450

KLDH-0.3

4

63

90~270

2000*600*950

650

KLDH-0.5

7.5

63

150~400

2500*800*1200

1000

KLDH-1

11

52

300~800

2800*1100*1400

1600

KLDH-2

18.5

52

600~1600

3300*1250*1650

2500

KLDH-3

22

52

900~2400

3800*1350*1800

3500

KLDH-4

30

52

1200~3200

4100*1500*1950

4500

KLDH-5

37

42

1500~4000

4400*1650*2050

6500

KLDH-8

45

42

2400~6400

5000*1800*2200

8400

KLDH-10

55

32

3000~8000

5200*1950*2500

9500

KLDH-12

75

32

3600-9600

6200*2200*2550

11000

Remarks:

* The above listed data is calculated according to powder’s gravity of 1.0g/cm3 as medium. Model selection should depend on the

comprehensive factors, such as viscosity, mesh, gravity etc.

* If works under special environment, such as high temperature, high pressure, explosive, combustible, corrosive etc. Users need to provide

detailed data, in order to select and customize.

* Not all products’ parameter are listed. For more information, please contact our sales engineer by info@konmixchina.com


Product Application


It is widely used in stirring and mixing powder and powder, powder and liquid, such as pharmaceutical, food, animal feed, pesticide, dye, chemical, plastic, ceramic,shampoo, coating, putty, sand, mortar and other industries.
