Your Current Location:Home > Products > Basket Mill (Hydraulic lifting type)

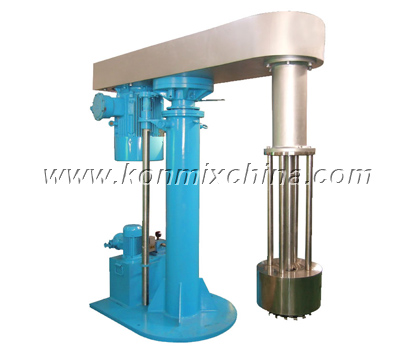

Name: Basket Mill (Hydraulic lifting type)

Category: Basket mill

Model: KBM Series

Feature: Integrate dispersing & grinding function together, with hydraulic lifting stand, rotation speed is variable, easy for operation

INQUIRY

Overview


Basket Mill is wet grinding machine.

Baset mill has gathered the dispersing & milling two processes into one machine.

Without pump, it realizes one machine to do dispersion & grinding together, with high work efficiency.

This machine will reduce product residues.

With hydraulic driving stand for lifting up/fall down.

Design Highlights


• This model reduces the production procedure.

• Without pump or pipelines, easy to clean.

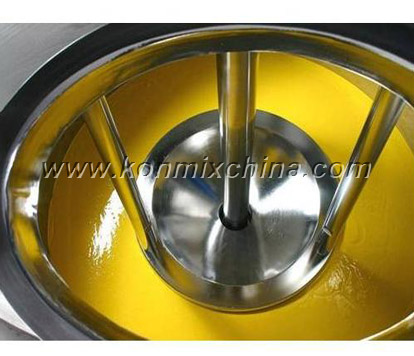

• Liquid circulation system is generated between the material feeding rotor and toothed dispersing disc.

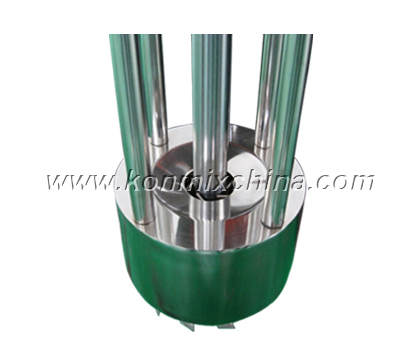

• The grinding beads are driven by the high-speed rod in basket chamber.

• The beads are high hardness which result in finemilling effect.

• Good milling fineness, high efficiency, and uniform particle distribution are easily achieved.

• Without dead-corner, little residue, and easy to change color or other products.

• This model is widely used in  paint,coatings, printing ink, pigment, color paste, pesticide,-- etc.

• Lifting ways:  with hydraulic cylinder to drive the lifting up & falling down.

Working Principle


The chamber's rotor/pin drives zirconia disc at high speed, which makes the upper part of dispersing disc and inner grinding chamber become negative pressure. The slurry is inhaled into grinding chamber. The grinding medium driven by the driving pin inside the chamber produces force in all directions, which put materials under the action of constant collision and friction to smaller the particle size and reducing fineness.

Technical Parameter



Model

Capacity
(L)

Power
(kw)

Speed
(rpm)

Basket vol.
(L)

Stroke
(mm)

Medium size  (mm)

KBM-4

20~100

4

0-2880

3.5

800

1.0~1.8

KBM-7.5

40~200

7.5

0-1440

4.8

900

1.0~1.8

KBM-11

45~300

11

0-1440

6.5

900

1.0~1.8

KBM-15

50~350

15

0-1440

9

900

1.0~1.8

KBM-18.5

100~500

18.5

0-1440

17

1100

1.0~1.8

KBM-22

150~800

22

0-1440

20

1100

1.0~1.8

KBM-30

200~1200

30

0-1440

32

1100

1.0~1.8

KBM-37

500~1500

37

0-1440

39

1600

1.0~1.8

KBM-55

800~2000

55

0-1440

65

1600

1.0~1.8

KBM-75

1200~3000

75

0-1440

85

1800

1.0~1.8

Remarks:

* The above listed max. capacity is calculated according to water as medium. Model selection should depend on the comprehensive factors,
such as materials' viscosity, gravity etc.

* If works under special environment such as high temperature, high pressure, explosive, combustible, corrosive etc. Correct data is required
for correct model selection.

* Not all products’ parameter are listed. For more information, please contact us by info@konmixchina.com

Product Application


This machine is suitable to do the materials of viscosity up to 6000 cps.
Production capacity scope: 50 ~ 10000Liters.
It is suitable for industrial of coatings, general printing inks, paint, and general pigment dispersions, cosmetic, adhesive, ointment, cream, shampoo, calcium carbonate powder, liquids agrochemicals etc.
